Rental Equipment

FORKLIFT, REACH 6,000 LB. 42' RS6-42

FORKLIFT%2c+REACH+6%2c000+LB.+42%27+RS6-42

RENTAL RATES

DAY
$360.00
WEEK
$1,025.00
4 WEEK
$1,990.00
QTY:    ADD TO CART

The model RS6-42 GEN:3 is built with high quality components, which provides the performance to get the job done.

  • Boom tip lift hook option is now available as a factory-installed option or field installed option.
  • Proven welded box-section telescopic boom design maximizes material lift and placement.
  • Cylinder design provides one of the fastest cycle times in the industry.
  • Frame leveling feature adjusts 10-degrees to the left and right, for level performance on uneven terrain.
  • Internal wet disc brakes provide excellent braking and long life.
  • Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.

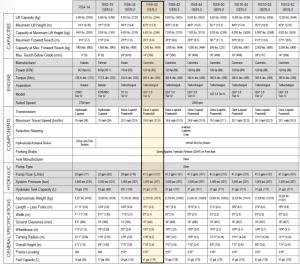

Features / Specifications

Capacities

Lift Capacity 6,600 lbs.
Maximum Lift Height 42'0"
Capacity at Maximum Lift Height 6,600 lbs.
Maximum Forward Reach 28'3"
Capacity at Maximum Forward Reach 1,000 lbs.
Maximum Reach Below Grade 14"

Engine

Manufacturer Cummins
Model QSF 3.8 Tier IV
Power  120 hp
Aspiration Turbocharged
Rated Speed 2,500 rpm

Components

Transmission Dana 3-speed Powershift
Maximum Travel Speed 19.6 mph
Selective Steering 4-Wheel
2-Wheel
Crab
Brakes 4-Wheel Hydraulically Actuated Internal Wet-Disc Brake
Parking Brake Spring-Applied, Hydraulic Release (SAHR) on Front Axle
Axle Manufacturer Dana

Hydraulics

Pump Type Gear
Total Capacity  41.5 gpm
System Pressure  3000 psi
Hydraulic Reservoir Capacity  45 gal.

General Specifications

Approximate Weight 22,000 lbs.
Length - Less Forks 19'1"
Width 8'0"
Ground Clearance 16"
Wheelbase 10'0"
Turning Radius 13'8"
Overall Height 7'10"
Frame Leveling ±10°
Fuel Capacity 47 gal.
